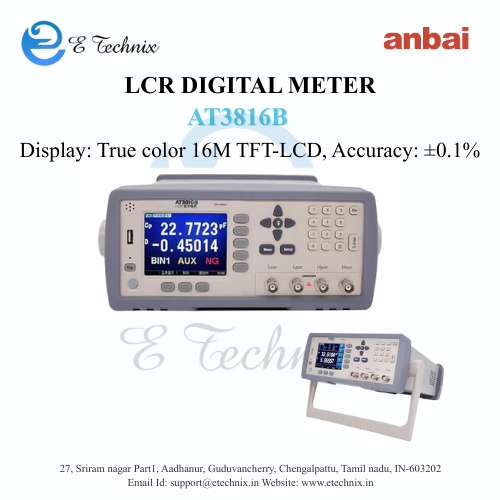

📊 LCR Meter – True Color TFT-LCD Display
High-precision tester with vivid display and multi-parameter analysis for electronic components.
🔧 Key Specifications
- Test Parameters: L, C, R, Z, D, Q, θ (°/rad), Vm, Im
- Frequency Range: 50Hz to 200kHz (37 basic frequencies)
- Signal Level: 0.01V to 2.00V (10mV steps)
- Output Impedance: 30Ω / 50Ω / 100Ω
-
- Features
- Three-parameter display
- Test speed: Up to 25 readings/sec
- 20 record groups, 14 sorting levels
- RS232 & Exhandler interfaces
- DCR measurement and ±2.5V DC bias (vs AT28 series)
- Features
