Rated Voltage:AC 220V±10% 50Hz
Machine Power: 700W±10% (max.)
Working Environment: 0~40℃ Relative humidity< 80%
Storage Temperature: -20~80℃ Relative humidity< 80%
Machine Size:Â 213.5*15*10cm
Weight: 2.6KG

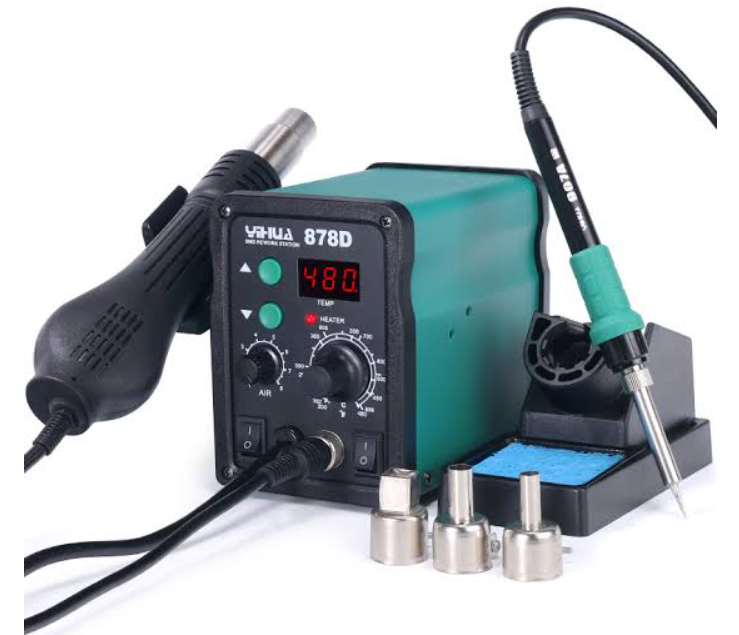

Item:                     Hot air gun                   Soldering iron.
Working Voltage:       AC 220V±10% 50Hz       AC 26V±10% 50Hz
Output Power:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 650WÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 50W
Temperature Range:     100℃~480℃                      200℃~480℃
Mode of Airflow:        Brushless fan                             —
Airflow:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 120L/min (max.)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â —
Temperature Stability:   ±15℃ (static)                      ±10℃ (static)
Display:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â LED (red/green)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â —-
Temperature Correction PID digital program proofreading              —-
PID Temperature Cycle:   Fast 200ms                                     —–
Heater:                Heating core ceramics heater    Common metal heater
Tips to Ground Impedance:      —                                         < 2Ω
Tips Voltage to Ground:Â Â Â Â Â Â Â Â Â —Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â < 2mV
Warranty:Â 6 month warranty on controller only
